Parts list
|
Item |
Description |
Part no. |
Qty |
|
1 |
Housing plates |
H00169698 |
1 |
|
2 |
Damper |
H00167744 |
1 |
|
3 |
Damper |
H00167747 |
1 |
|
5 |
Plug |
H00161833 |
1 |
|
6 |
Parallel pin |
H00901101 |
2 |
|
7 |
Hex. socket screw |
H00900003 |
4 |
|
8 |
Hex. socket screw |
H00952680 |
2 |
|
9 |
Lock washer |
H00090597 |
26 |
|
10 |
Hex. screw |
H00090566 |
10 |
|
11 |
Hex. nut |
H00091000 |
10 |
|
12 |
Shield |
H00167753 |
1 |
|
20 |
Label set (incl. part 21) |
H00169723 |
1 |
|
21 |
Safety label set |
H00169555 |
1 |
|

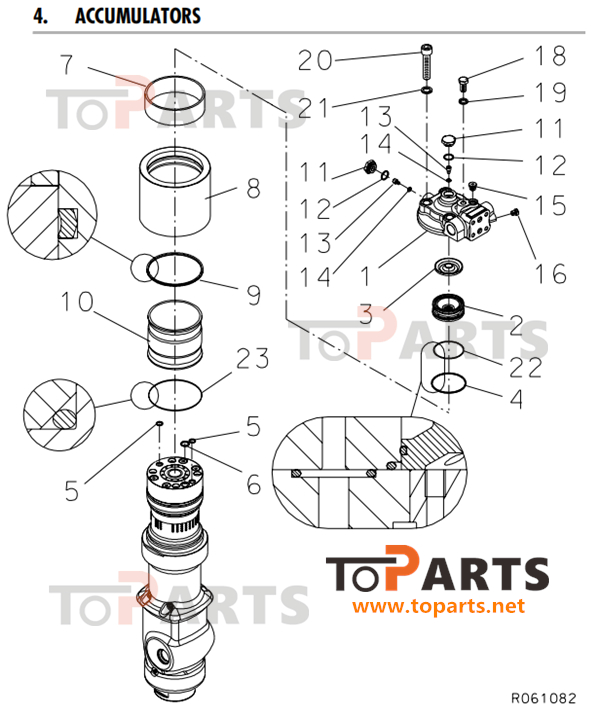

1 |
Cover (incl. parts 15-19) |
H00167012 |
1 |
|
2 |
Accumulator bottom |
H00166992 |
1 |
|
3 |
Membrane |
H00102044 |
1 |
|
4 |
O-ring |
H00094068 |
1 |
|
5 |
O-ring |
H00090011 |
1 |
|
6 |
O-ring |
H00090012 |
1 |
|
7 |
Assembly ring |
H00166991 |
1 |
|
8 |
Accumulator cover |
H00167008 |
1 |
|
9 |
Seal |
H00953599 |
1 |
|
10 |
Membrane |
H00154759 |
1 |
|
11 |
Shield plug |
H00400300 |
2 |
|
12 |
O-ring |
H00910006 |
2 |
|
13 |
Filling plug |
H00042074 |
2 |
|
14 |
Usit-ring |
H00090056 |
2 |
|
15 |
Flange plug |
H00090444 |
1 |
|
16 |
Flange plug |
H00041658 |
1 |
|
18 |
Hex. screw |
H00090514 |
1 |
|
19 |
Lock washer |
H00090597 |
1 |
|
20 |
Hex. socket screw |
H00900005 |
4 |
|
21 |
Lock washer |
H00091010 |
4 |
|
22 |
O-ring |
H00953596 |
1 |
|
23 |
O-ring |
H00953932 |
1 |
|
1 |
Pressure adjusting spool |
H00163059 |
1 |
|
2 |
Spring housing |
H00161577 |
1 |
|
3 |
Flange plug |
H00090401 |
1 |
|
4 |
Shim plate |
H00041640 |
X |
|
5 |
Shim plate |
H00041639 |
X |
|
6 |
Spring |
H00090114 |
1 |
|
7 |
Washer |
H00162042 |
1 |
|
8 |
Seal |
H00951479 |
1 |
|
9 |
O-ring |
H00901143 |
1 |
|
10 |
O-ring |
H00090004 |
1 |
|
1 |
Cylinder (incl. parts 2 and 15) |
H00167010 |
1 |
|
2 |
Flange plug |
H00090444 |
4 |
|
3 |
Distributor cover |
H00166989 |
1 |
|
4 |
Distributor |
H00166988 |
1 |
|
5 |
Steering ring |
H00166987 |
1 |
|
6 |
Seal |
H00953597 |
1 |
|
7 |
Piston |
H00166986 |
1 |
|
8 |
Split pin |
H00953593 |
2 |
|
9 |
Seal carrier |
H00167000 |
1 |
|
10 |
Seal |
H00963598 |
1 |
|
11 |
Seal |
H00950030 |
1 |
|
12 |
O-ring |
H00953594 |
1 |
|
13 |
Tool retaining pin |
H00167004 |
1 |
|
14 |
O-ring |
H00953595 |
2 |
|
15 |
Grease nipple |
H00090201 |
1 |
|
1 |
Lower tool bushing (incl. part 1.2) |
H00167001 |
1 |
|
1.2 |
Seal |
H00167003 |
1 |
|
1 |
Swivel couplings(incl. parts 1.1-1.10) |
H00167165 |
1 |
|
1.1 |
Manifold |
H00167167 |
1 |
|
1.2 |
Swivel |
H00167697 |
2 |
|
1.3 |
Screw |
H00166995 |
2 |
|
1.4 |
Flange plug |
H00090444 |
4 |
|
1.5 |
Hex. socket screw |
H00091041 |
4 |
|
1.6 |
Lock washer |
H00091012 |
4 |
|
1.7 |
Seal |
H00952060 |
4 |
|
1.8 |
O-ring |
H00094035 |
2 |
|
1.9 |
O-ring |
H00094087 |
4 |
|
1.10 |
O-ring |
H00090012 |
2 |
Our customers

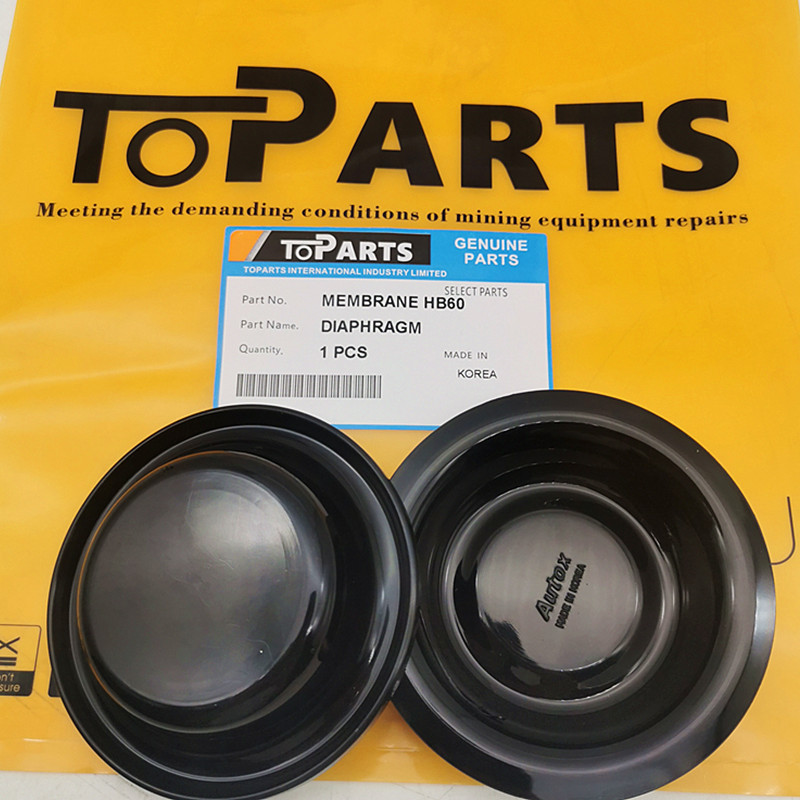

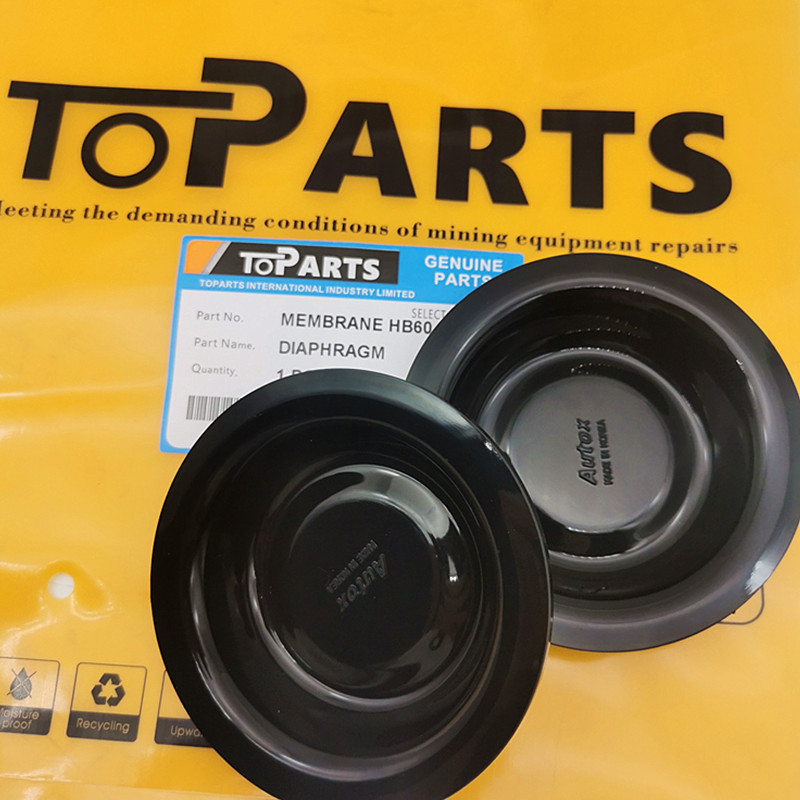

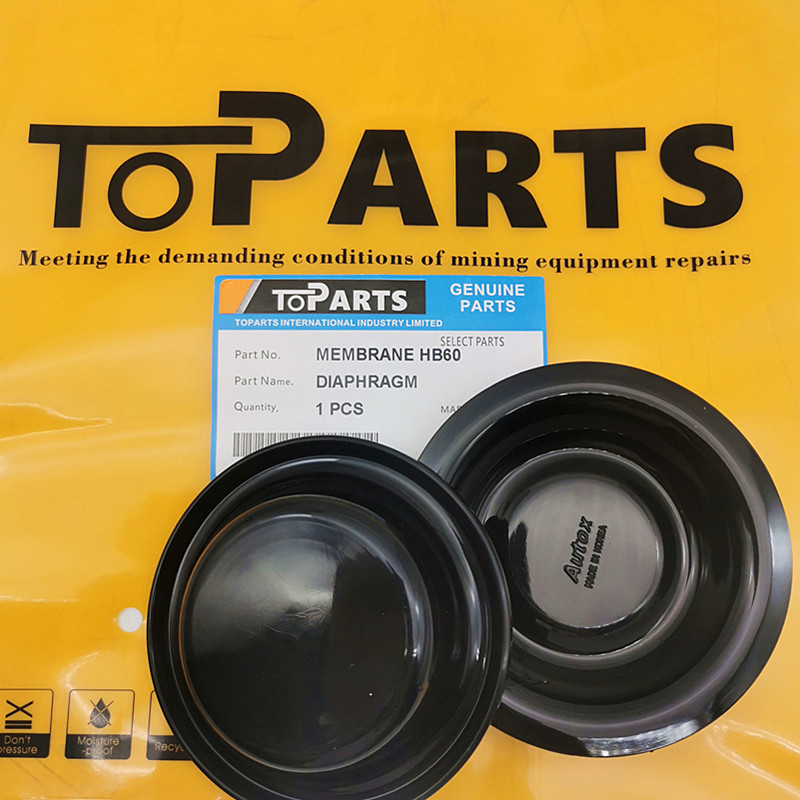

Ensure the reliable power and longevity of your HAMMER HB60 hydraulic breaker with the Toparts H00102044 Hydraulic Membrane. This critical component is a vital part of the hydraulic system, absorbing pressure surges and maintaining the internal balance needed for powerful and consistent operation.
