Name: 3361150011 Chicago RX8 Hydraulic breaker seal kit
Brand: TOPARTS
SKU: TP0285
Price: 115.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Home > Breakers seal kit > Chicago

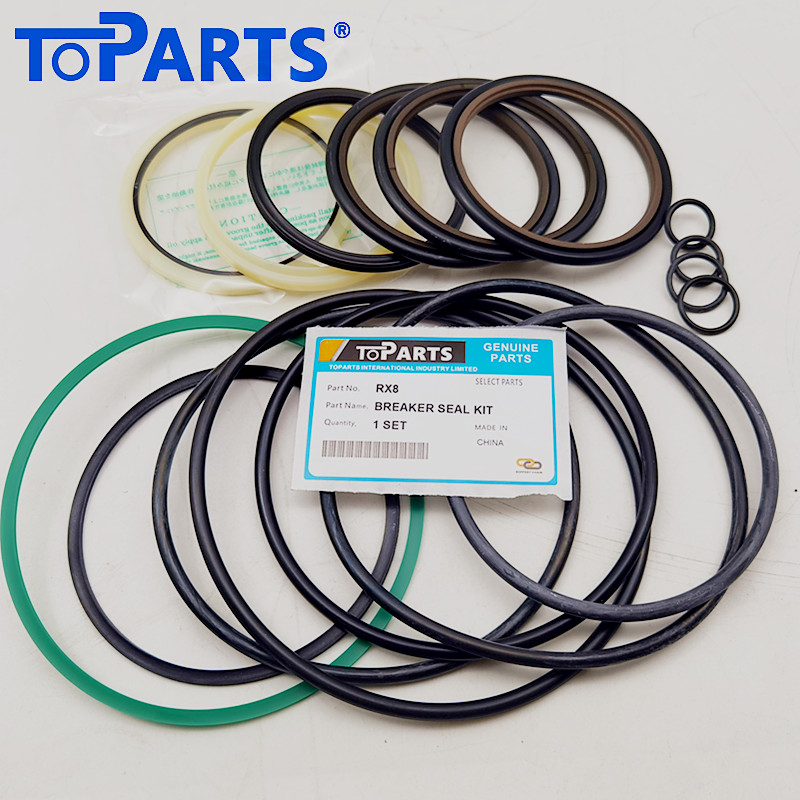

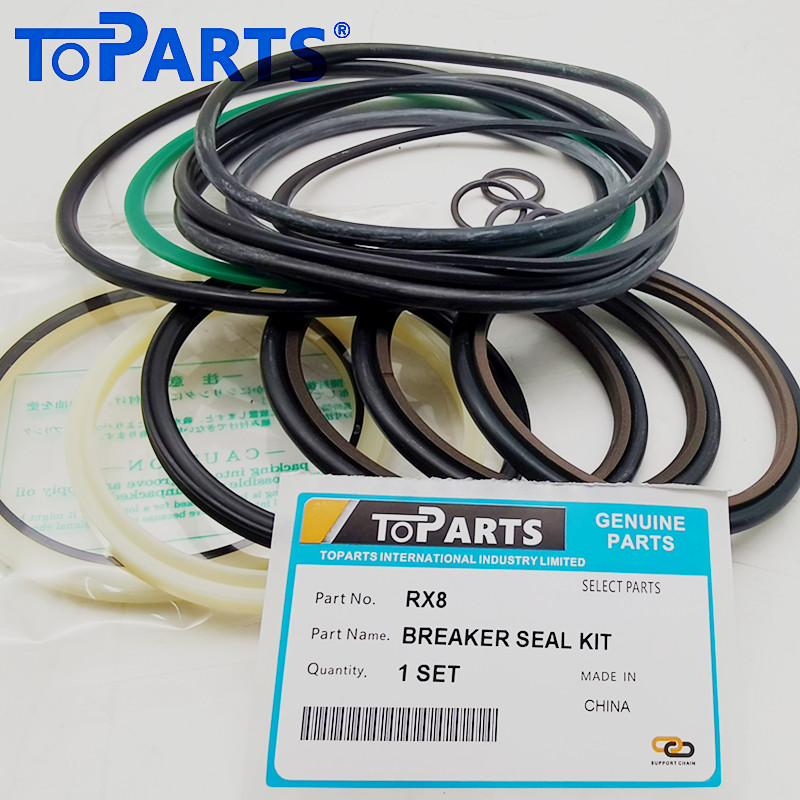

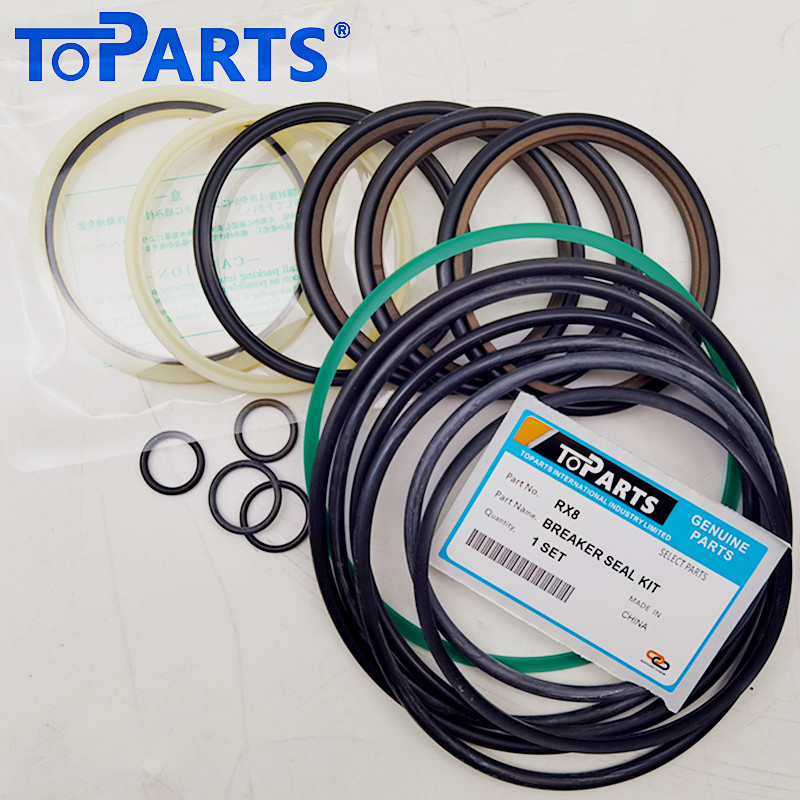

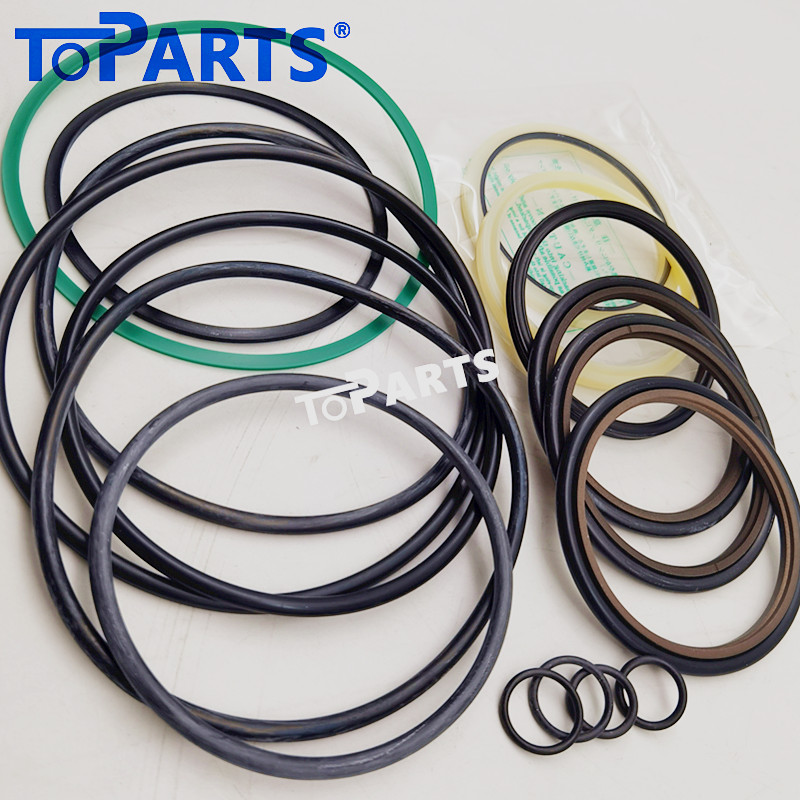

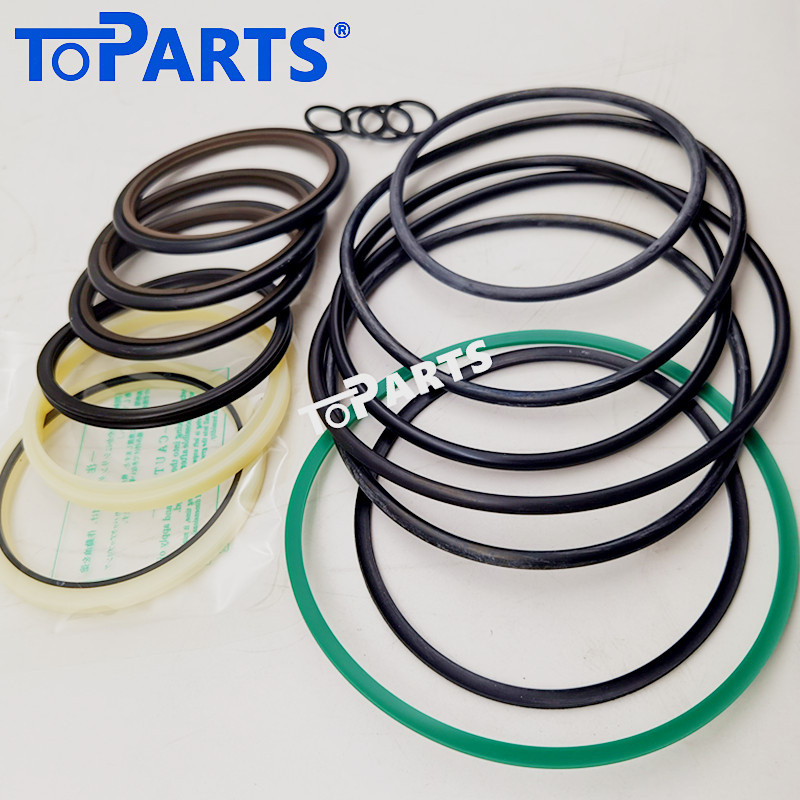

3361150011 Chicago RX8 Hydraulic breaker seal kit

Description Review

Description

Model:Chicago RX8 Hydraulic breaker

Part Name:Chicago Hydraulic breaker seal kit, Hydraulic hammer seal kit

Tool:80MM

Part Number:3361150011,3382070011

Material:TPU+HNBR+PTFE

Packaging Details: bag or box +carton

Certification: IOS 9001

Delivery Time: 2-5days upon payments confirmed

Position:Chicago Hydraulic Breaker Systerm

Brand:TOPARTS, OEM or as Required

Payment Terms: TT/Paypal/WEST UNION

Supply Ability:500

MOQ:1set
Parts list

No.	Description	Quantity	Part number
9	Plug	1	3363066963
10	Bolt	8	3361191001
11	Washer	8	3361191002
12	Cover	1	3361150007
13	O-ring	1	0663925100
14	Filling valve	1	3363087286
15	Threaded plug	1	3360478426
16	O-ring	1	3361192005
17	Back-up ring	1	3361192006
18	Back-up ring	1	3361192008
19	O-ring	1	3361192007
20	Seal bush	1	3361150003
21	Seal	1	3361192002
22	O-ring	2	3361192004
23	Seal	2	3361192003
24	Plate spring	1	3361150004
25	Spacer	1	3361150005
26	Control valve	1	3361150106
27	Cylinder bush	1	3361150002
28	O-ring	1	3361192011
29	Seal	1	3361192013
30	Seal	1	3361192014
31	Wiper	1	3361192016
32	Piston	1	3315332800
33	Seal	1	3315296625
34	Threaded insert	8	3363066589
35		1	3360106744
36	O-ring	2	3361192067
37	Fitting	2	3361031476
38	Cap	2	3361353486
39	Housing	1	3361150008
40	Grease nipple	1	0544215300
41	Retainer pin	1	3361150010
42	Split pin	1	3360100537
43	Wear bush	1	3361150012
44	Cap	1	3363031712
45	O-ring	1	3361192015

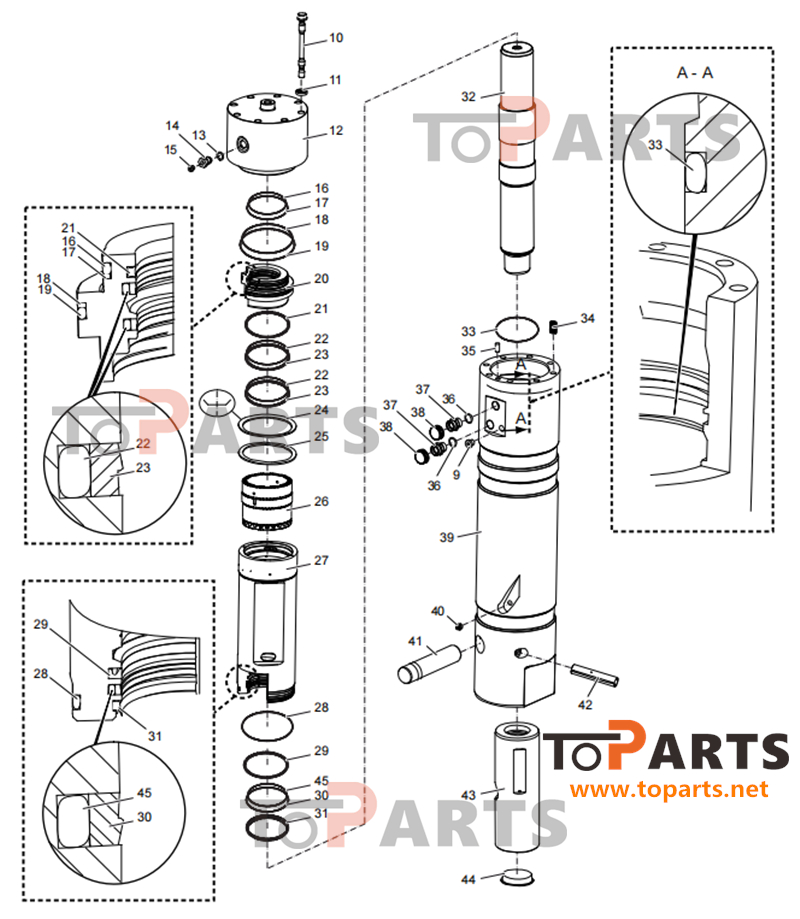

Exploded view

Our customers

‌Product Overview‌

The ‌3361150011 Chicago RX8 Hydraulic Breaker Seal Kit‌, engineered and produced by Toparts Factory, is a premium sealing solution designed to restore and maintain the optimal performance of your Chicago RX8 hydraulic breaker. This kit ensures leak-free operation, extends equipment lifespan, and minimizes downtime caused by seal failures.

‌Key Features‌

✅ ‌High-Quality Materials‌

Crafted from advanced nitrile rubber (NBR) and polyurethane (PU), the seals withstand extreme pressure, abrasion, and temperature fluctuations (-30°C to +110°C).

✅ ‌Precision Engineering‌

Each component is precision-molded to meet OEM specifications, guaranteeing perfect compatibility with the Chicago RX8 model.

✅ ‌Comprehensive Kit‌

Includes all necessary seals, O-rings, wear rings, and backup washers for a full seal replacement.

✅ ‌Durability & Reliability‌

Resists hydraulic fluid degradation and environmental contaminants, ensuring long-term performance in harsh construction environments.

‌Why Choose Toparts?‌

‌Factory Direct Quality:‌ Rigorous ISO-certified production processes ensure consistency and reliability.

‌Cost-Effective Maintenance:‌ Avoid expensive equipment replacements by using genuine-grade seals at competitive pricing.

‌Global Trust:‌ Trusted by construction and mining industries worldwide for over 15 years.

‌Applications‌

Ideal for construction, demolition, mining, and quarrying operations where the Chicago RX8 hydraulic breaker is deployed.

‌Order Information‌

‌Part Number:‌ 3361150011

‌Package:‌ Sealed in anti-corrosion packaging with clear component labeling.
Tag:Hydraulic breaker seal kit, Hydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
