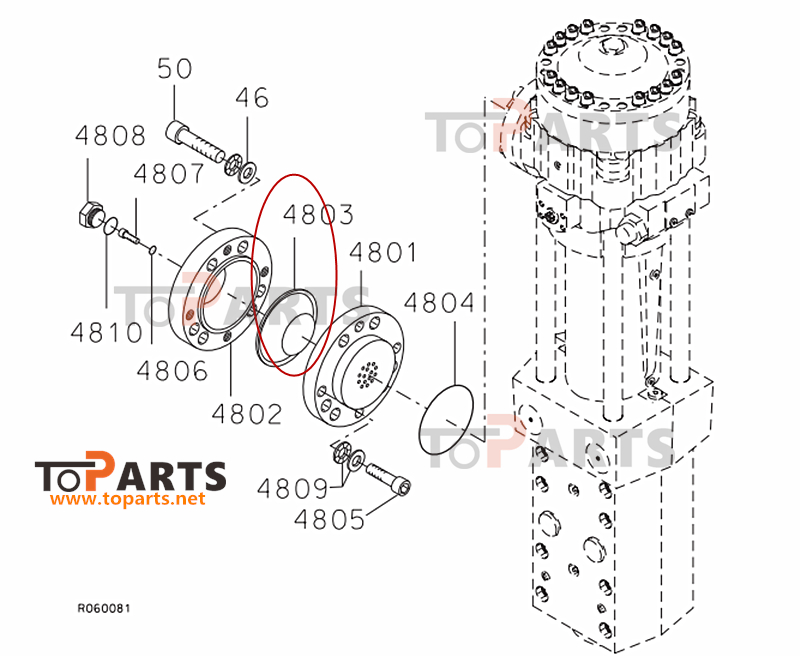

Parts list
|
Item |
Description |
Part no. |
Qty |
|
48 |
High pressure accumulator(inclparts 4801-4810) |
200527 |
1 |
|
4801 |
Accumulator bottom |
200528 |
1 |
|
4802 |
Accumulator cover |
200529 |
1 |
|
4803 |
Membrane |
300177 |
1 |
|
4804 |
O-ring |
90032 |
1 |
|
4805 |
Hex.socket screw |
91006 |
4 |
|
4806 |
Usit-ring |
90056 |
1 |
|
4807 |
Filling plug |
42074 |
1 |
|
4808 |
Shield plug |
400300 |
1 |
|
4809 |
Lock washer |
90597 |
4 |
|
4810 |
0-ring |
910006 |
1 |
|
50 |
Hex.socket screw |
900005 |
6 |
|
46 |
Lock washer |
91010 |
6 |
|
|
*)Are included in seal set |
|
|
Our advantage: original system data to ensure accurate size

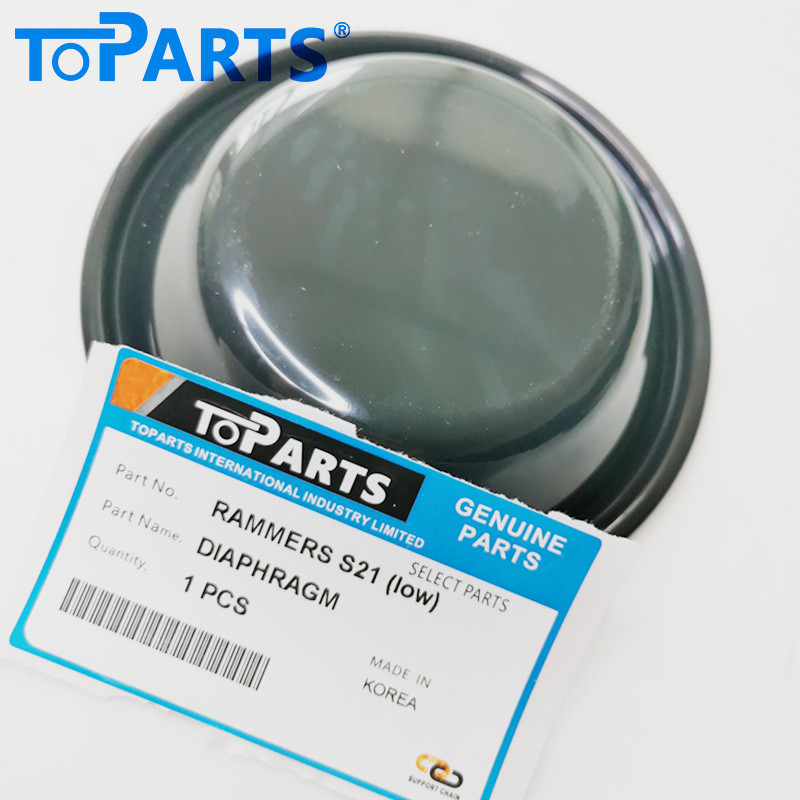

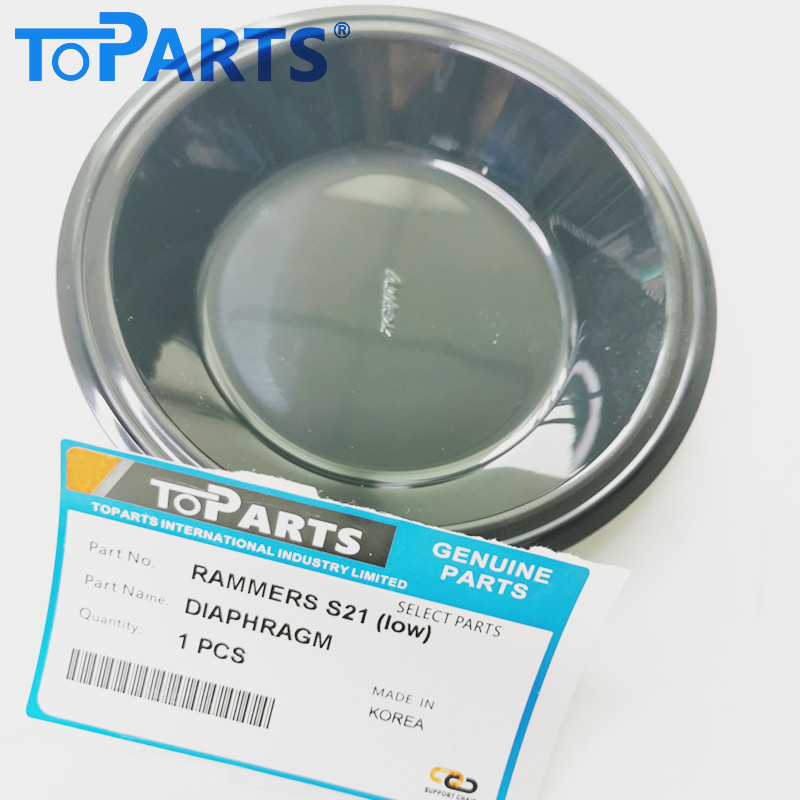

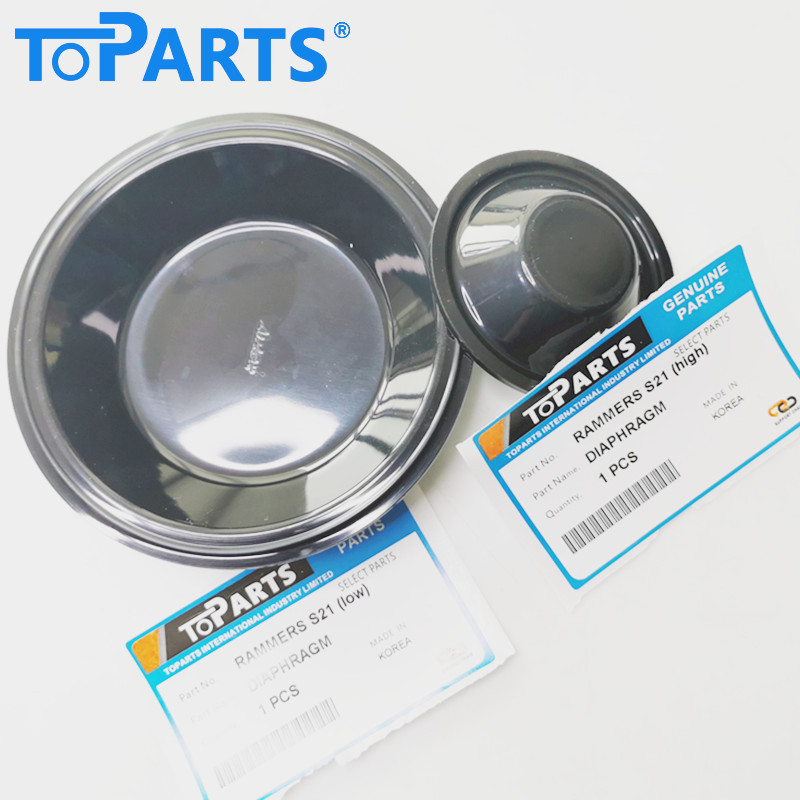

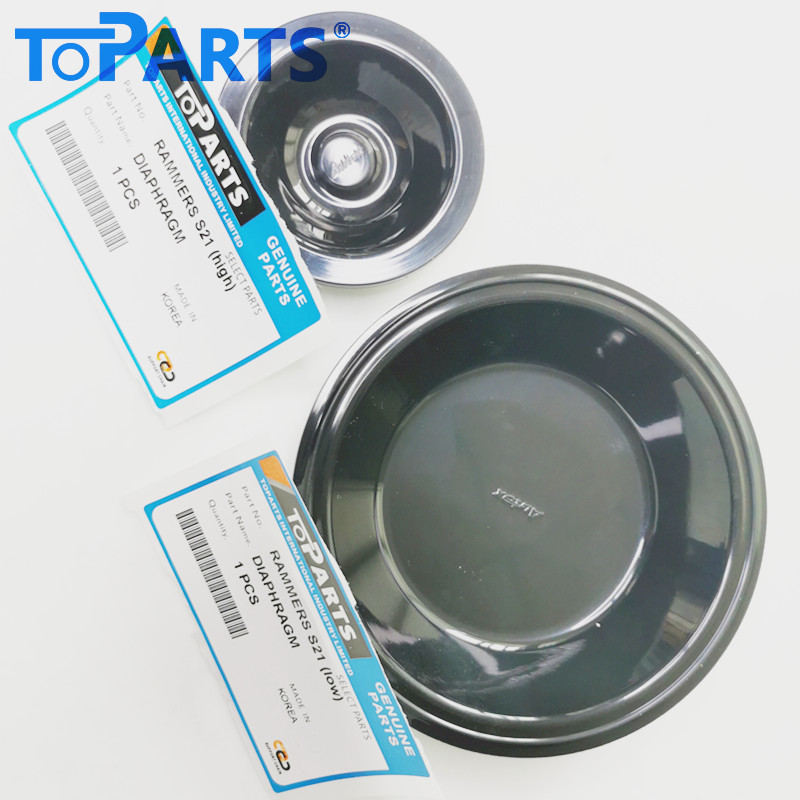

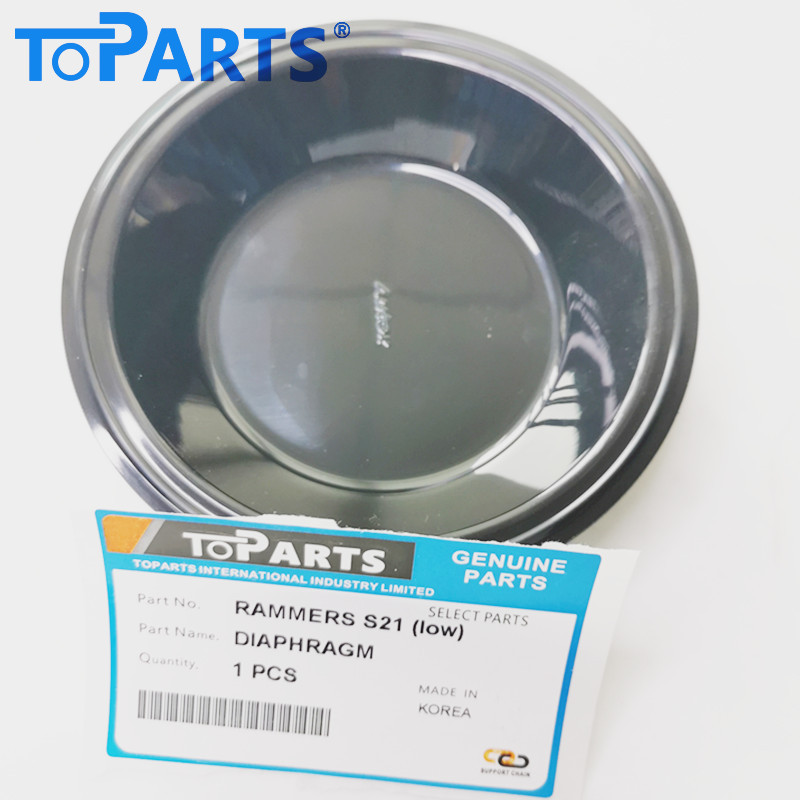

Toparts 300177 Hydraulic Breaker Diaphragm for Rammer S21 & S29
Ensure maximum impact energy and protect the sophisticated components of your hydraulic hammer with the Toparts 300177 Hydraulic Breaker Diaphragm (Membrane). This essential component is specifically designed for the accumulator on the Rammer S21 and S29 Hydraulic Hammers, guaranteeing stable pressure regulation and reliable operation.
Engineered for Rammer S21 / S29 Accumulators
The diaphragm is the critical element within the accumulator, serving as a flexible barrier that separates the highly pressurized nitrogen gas from the hydraulic oil. Failure of this part leads directly to pressure loss, cavitation, and rapid wear of the hammer's internal mechanism. The Toparts 300177 diaphragm is a high-precision, direct aftermarket replacement, meticulously engineered to handle the intense pressure fluctuations and high impact forces of both the Rammer S21 and S29 models.
Key Features and Benefits:
Broad Compatibility: This membrane is perfectly compatible with the accumulators of both the Rammer S21 and S29 hydraulic hammer models.
Direct OEM Replacement: This membrane is a seamless replacement for the Rammer OEM part number 300177, ensuring full compatibility and secure, straightforward installation.
Superior Material Quality: Manufactured from highly durable, specialized elastomers, our diaphragm provides exceptional resistance to high temperatures, chemical attack from hydraulic fluids, and constant high-pressure flexing, ensuring a significantly extended service life.
Restores Impact Energy: A new, properly installed diaphragm restores correct accumulator function, preventing hydraulic pressure decay and ensuring the hammer delivers maximum, consistent impact energy.
Protects Internal Components: By maintaining effective separation and damping, the diaphragm prevents damaging pressure spikes and cavitation, protecting the hammer's piston, cylinder, and other sensitive hydraulic parts from premature failure.
Product Details:
Part Number (Membrane): 300177
Component Type: Hydraulic Breaker Diaphragm / Accumulator Membrane
Compatible Models: Rammer S21 and S29 Hydraulic Hammers
Application: Accumulator Gas-Oil Separation and Damping
Manufacturer: Toparts
Don't compromise the output or lifespan of your hydraulic hammer. Choose the trusted quality and high performance of the Toparts 300177 Hydraulic Breaker Diaphragm for your Rammer S21 or S29.Tag:Hydraulic breaker diaphragm,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit,Hydraulic Rock Drills seal kit
