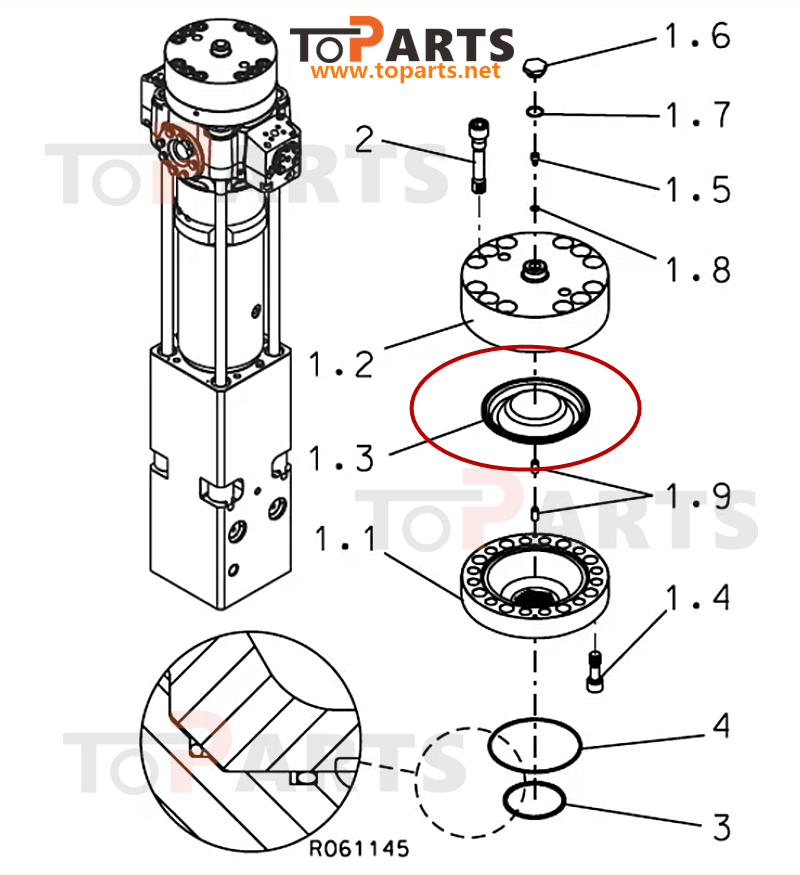

Parts list
|
ltem |
Description |
Part no. |
Qty |
|
1 |
Accumulator (incl.parts 1.1-1.9) |
168284 |
1 |
|
1.1 |
Accumulator bottom |
168285 |
1 |
|
1.2 |
Accumulator cover |
168287 |
1 |
|
1.3 |
Membrane |
168291 |
1 |
|
1.4 |
Accumulator screw |
168289 |
8 |
|
1.5 |
Filling plug |
40368 |
1 |
|
1.6 |
Shield plug |
154015 |
1 |
|
1.7 |
O-ring |
910006 |
1 |
|
1.8 |
Usit-ring |
90056 |
1 |
|
1.9 |
Parallel pin |
90304 |
2 |
|
2 |
Accumulator screw |
168591 |
12 |
|
3 |
Seal |
168563 |
1 |
|
4 |
O-ring |
90034 |
1 |
|
|
")Are included in seal set |
|
|

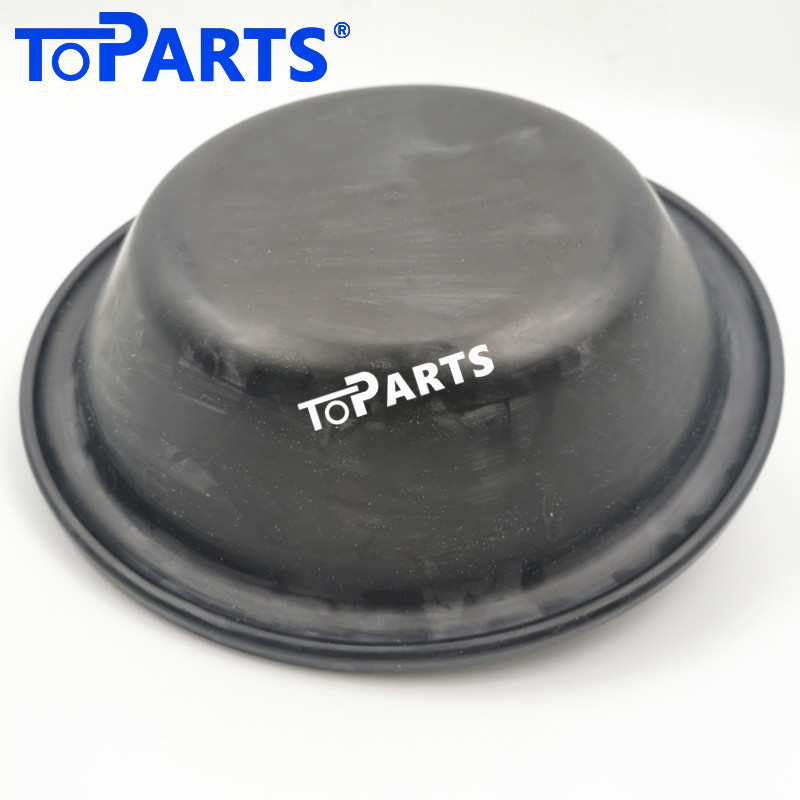

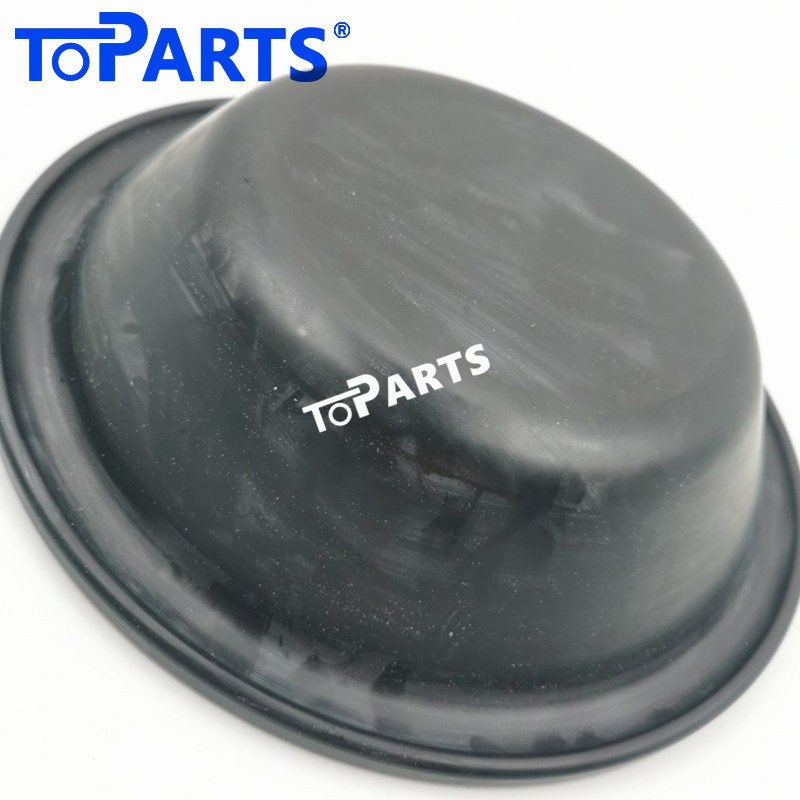

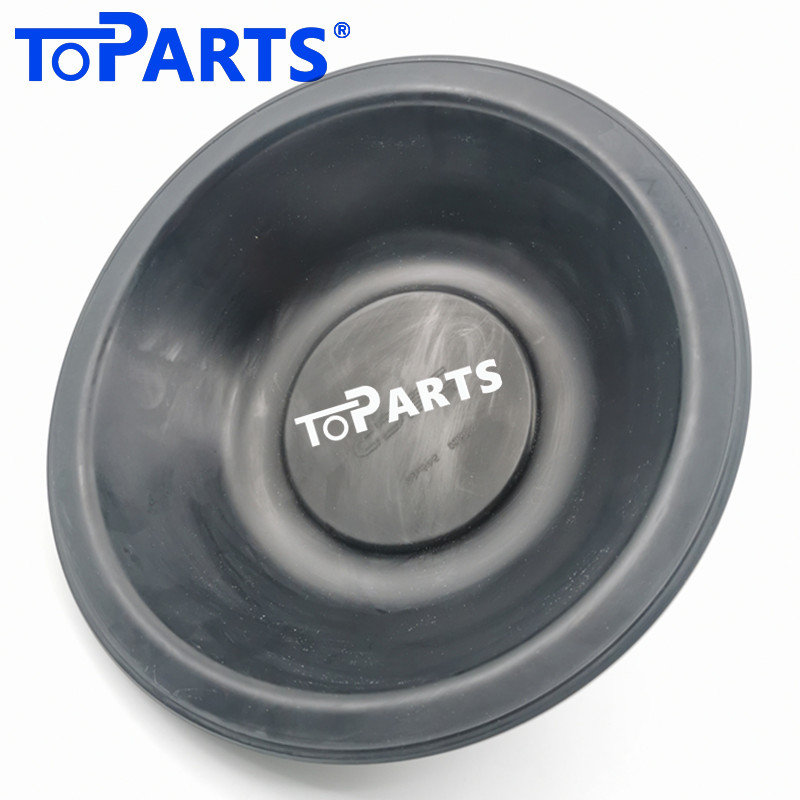

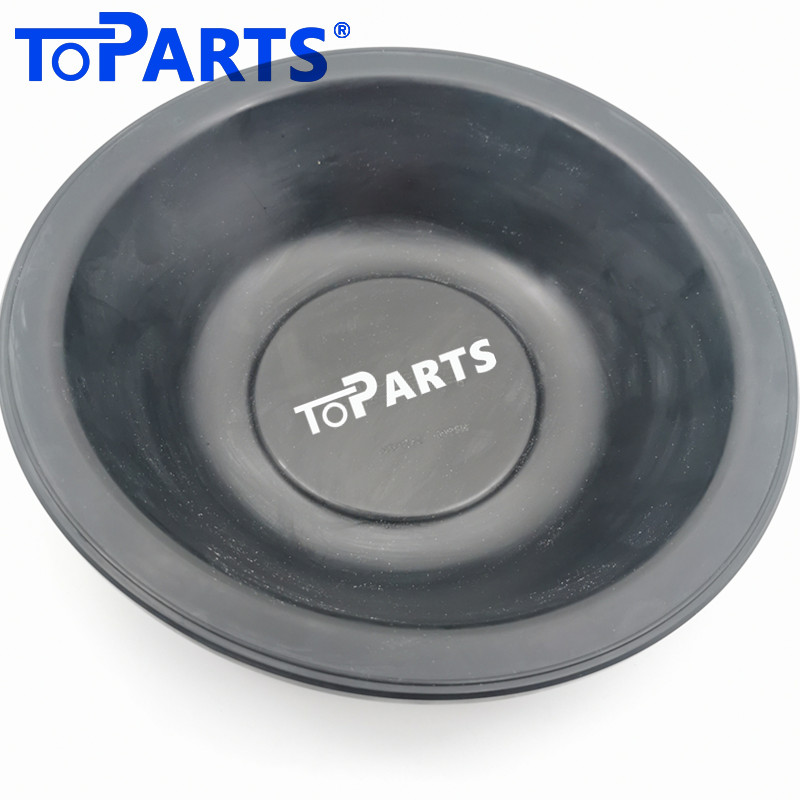

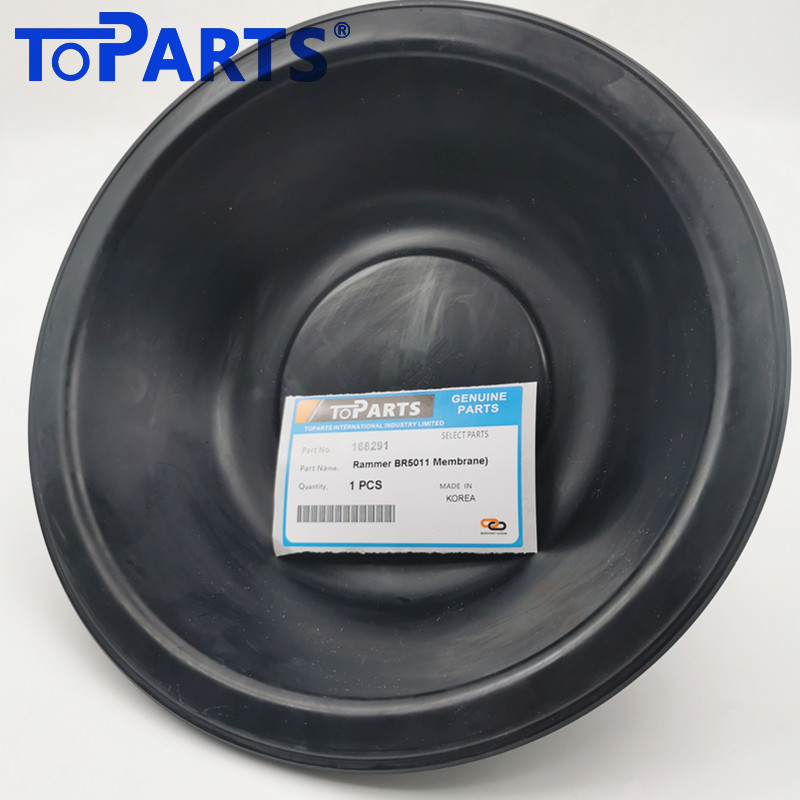

Toparts 168291 Hydraulic Breaker Diaphragm for Rammer 5011
Maintain the consistent hitting power and high-frequency performance of your demolition equipment with the Toparts 168291 Hydraulic Breaker Diaphragm. Specifically engineered for the Rammer 5011 (Large Range) hydraulic hammer, this premium membrane is a critical component for the accumulator system, designed to handle the massive energy requirements of primary demolition and quarrying.
Engineered for Rammer Heavy-Duty Performance
The Rammer 5011 is a powerhouse in the industry, designed for massive carriers and the most challenging rock-breaking tasks. Its accumulator relies on a high-spec diaphragm to separate high-pressure nitrogen gas from the hydraulic oil. A faulty or worn membrane can cause power loss, erratic striking, and damaging pressure spikes. Toparts has developed the 168291 membrane using advanced elastomer technology to ensure your 5011 maintains its factory-spec impact energy.
Key Features and Benefits:
Direct OEM Compatibility: Precisely matched to Rammer part number 168291, ensuring a perfect fit and easy installation during your accumulator service.
High-Resilience Material: Manufactured from a specialized Hydrogenated Nitrile (HNBR) or premium NBR compound, offering superior resistance to oil, heat, and high-pressure gas permeation.
Exceptional Fatigue Resistance: Engineered to endure millions of rapid expansion and contraction cycles without losing structural integrity or gas-sealing properties.
Thermal Stability: Optimized to perform reliably in extreme temperature ranges, from freezing winter starts to the high operating temperatures of continuous mining operations.
Hydraulic System Protection: By absorbing hydraulic shocks effectively, our diaphragm protects the hammer’s internal valves and the carrier’s pump from premature wear.
Cost-Effective Durability: Delivers OEM-level performance with a longer service life, reducing the frequency of nitrogen recharges and minimizing operational downtime.
Product Specifications:
Feature:Details
Part Number:168291,173535
Compatible Model:Rammer 5011 Hydraulic Hammer
Component Type:Accumulator Diaphragm / Membrane
Material Grade:High-Spec Industrial Rubber (HNBR/NBR)
Application:Primary Rock Breaking, Mining, and Quarrying
Manufacturer:Toparts
Why Choose Toparts?
Toparts is a leading manufacturer specializing in high-end parts for the global hydraulic attachment industry. We understand that on a production site, reliability is the bottom line. Our 168291 diaphragm is rigorously tested to ensure it can withstand the punishing demands of the Rammer 5011, providing you with a dependable solution you can trust.
Would you like me to check the availability of the matching Seal Kit or the Nitrogen Gas Charging Kit for your Rammer 5011 to complete your maintenance order?
